What is the native Spark pipeline engine?

In one sentence

The native Spark pipeline engine takes the metadata of a Hop pipeline and executes it as a Spark SQL Dataset graph on Apache Spark 4.1.x — without translating the pipeline through Apache Beam.

How that differs from Beam Spark

Apache Hop already had a way to run pipelines on Spark: the Beam Spark pipeline engine. That path converts your Hop graph into an Apache Beam pipeline, then uses Beam’s Spark runner (Spark 3.5.x line).

The native engine skips Beam entirely:

  • Hop’s SparkPipelineEngine builds a logical plan of Spark Datasets on the driver.

  • Each Hop transform becomes either a native handler (Spark APIs such as groupBy, join, read / write) or a generic mapPartitions stage that runs a small single-threaded Hop mini-pipeline once per Spark partition.

  • You use Hop’s Spark File Input / Spark File Output transforms for bulk Dataset I/O (not Beam File Input/Output).

Topic Native Spark engine Beam Spark engine

Purpose

Batch Hop pipelines on Spark Datasets / mapPartitions

Beam pipelines on Spark (batch and streaming)

Spark line

4.1.x (Scala 2.13)

3.5.x (Scala 2.12; see Beam support matrix)

Programming model

Spark SQL Dataset + Hop mini-pipelines

Apache Beam PCollections + runners

Streaming / windows

Out of scope — use Beam

Supported via Beam

Preferred bulk I/O

Spark File Input / Spark File Output

Beam File Input / Beam File Output

Side data (lookups)

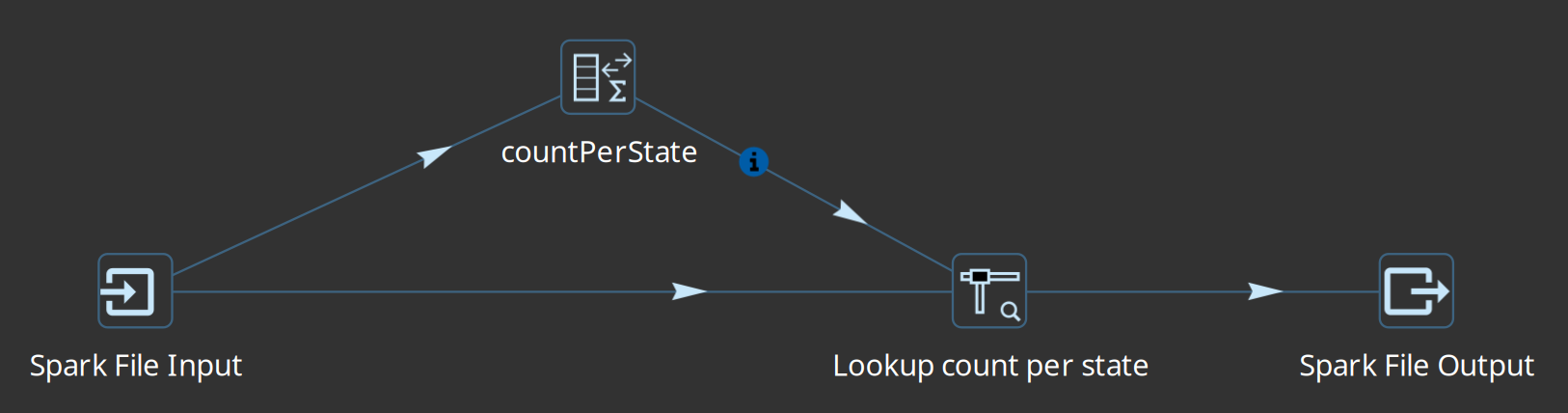

Info streams (broadcast), e.g. Stream Lookup

Beam side inputs

Conditional fan-out

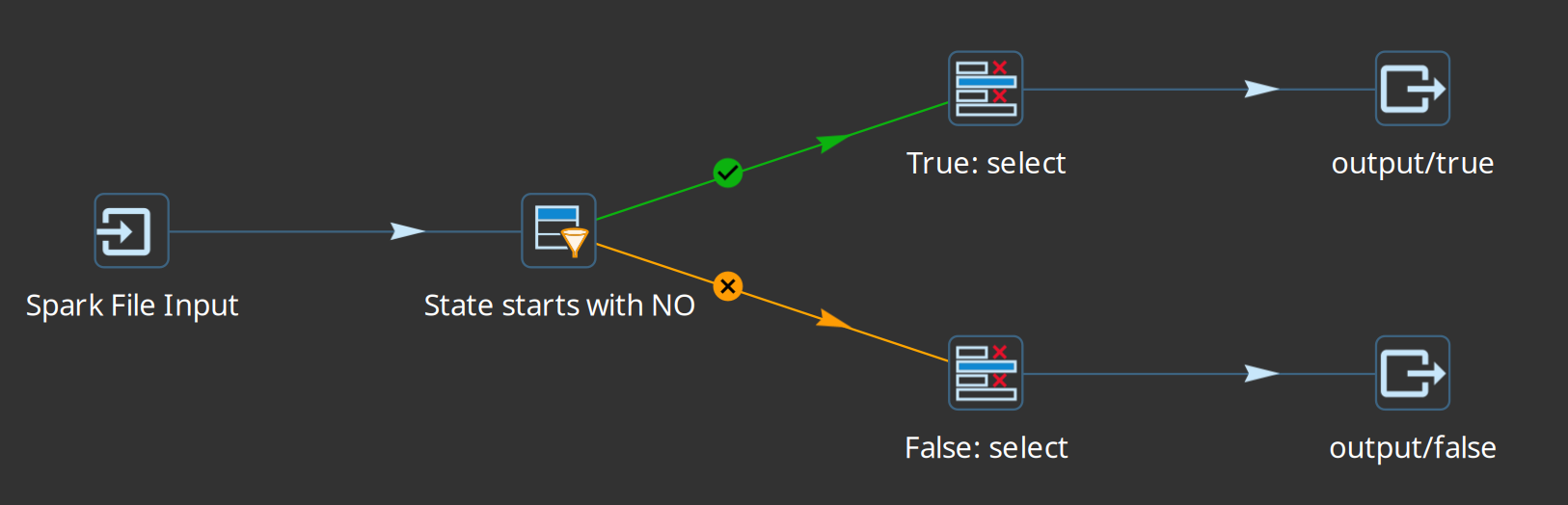

Target streams (Filter Rows, Switch/Case)

Beam multi-output tags

Engine id (plugin)

SparkPipelineEngine — “Native Spark pipeline engine”

Beam Spark run configuration

If you need streaming, windowing, or Beam-only connectors, stay on the Beam engines. If you want a straightforward batch path on modern Spark 4 with Dataset-oriented I/O, use native Spark.

How a Hop pipeline becomes a Spark job

  1. You design a normal Hop pipeline (.hpl) and select a Native Spark pipeline run configuration.

  2. On prepare, the engine walks the enabled transform graph in order.

  3. For each transform it either:

    • applies a native handler that rewrites the hop as Spark Dataset operations, or

    • wraps the transform in mapPartitions so each Spark partition runs that transform in a tiny local Hop pipeline.

  4. File outputs and other Spark actions materialise the graph (read → transform → write).

  5. Transform metrics are collected via Spark accumulators and shown in Hop like any other engine.

You still design pipelines visually in Hop. Spark’s role is the distributed execution engine and the Dataset runtime under the hood.

Version support matrix

Java: Hop requires Java 21 for the GUI, hop-run, and the fat jar executed on the Spark driver/executors. Your Spark cluster must also run a JVM that can load that bytecode (Java 21).

Spark: The native engine is built and tested against Spark 4.1.x (currently 4.1.2 in the Hop source tree, Scala 2.13). For local[] runs, Spark libraries are packaged under plugins/engines/spark/lib, so you do *not need a separate Spark install on your laptop.
Hop version Native Spark engine Target Spark Notes

2.19.0+

Included (plugins/engines/spark)

4.1.x (Scala 2.13)

Independent of Beam’s Spark 3.5.x client packs

Earlier Hop versions

—

—

Native Spark engine not available; use Beam Spark if needed

Do not mix this engine with Beam’s Spark 3.5 fat-jar packs or an accidental SPARK_HOME that points at Spark 3.x when you intend to use native Spark 4.1.

Prerequisites

  • Apache Hop 2.19+ with the engines-spark plugin (standard Hop client / assembly includes it).

  • Java 21.

  • Familiarity with Hop pipelines, metadata, and run configurations.

  • For cluster submit:

    • A Spark 4.1.x distribution (SPARK_HOME pinned to that tree).

    • Network access to the master and workers.

    • Paths for data and metadata that workers can reach (HDFS, object store, shared FS).

  • Optional but recommended: an execution information location and execution data profile for history, metrics, and row samples in the GUI.

How to use it

Create a local[*] pipeline run configuration

This is the fastest way to learn: Spark runs inside the Hop process using all local cores (local[*]), with no cluster and no fat jar.

On the Native Spark engine options tab, Load configuration template can pre-fill common setups (Local execution, Spark standalone server, spark-submit, Databricks, YARN, …). See Native Spark pipeline engine.
For Iceberg TABLE mode, create a Spark Catalog entry and use Load catalog template (Hadoop local/object store, REST, Hive, Glue, Nessie, …). Each preset starts Extra conf with a commented # docs: link to vendor documentation.

  1. Open Metadata → Pipeline run configuration → New.

  2. Give it a clear name, for example spark-local.

  3. Set Engine type to Native Spark pipeline engine.

  4. On the engine tab, set at least:

Option Suggested first value

Spark master

local[*] (or local[4] to cap cores)

Application name

Apache Hop (or your project name)

Fat jar file location

Leave empty for pure local[*]

Spark config

Optional; one key=value per line (advanced tuning)

Driver / executor memory & cores

Optional; leave empty for local defaults

Temp location

Optional; defaults to the JVM temp directory

  1. On the main run-configuration tab, optionally attach:

    • Execution information location — where Hop stores run history

    • Execution data profile — which row samples to capture

  2. Save the configuration.

Native Spark pipeline run configuration editor

Full option reference: Native Spark pipeline engine.

First pipeline on local[*]

  1. Create a small batch pipeline, for example:

    • Spark File Input — CSV path under your project, header and separator, field list

    • Filter Rows or Select Values — any familiar transform

    • Spark File Output — path, format (csv or parquet), save mode Overwrite

  2. Run the pipeline and choose your spark-local run configuration.

  3. When it finishes, check:

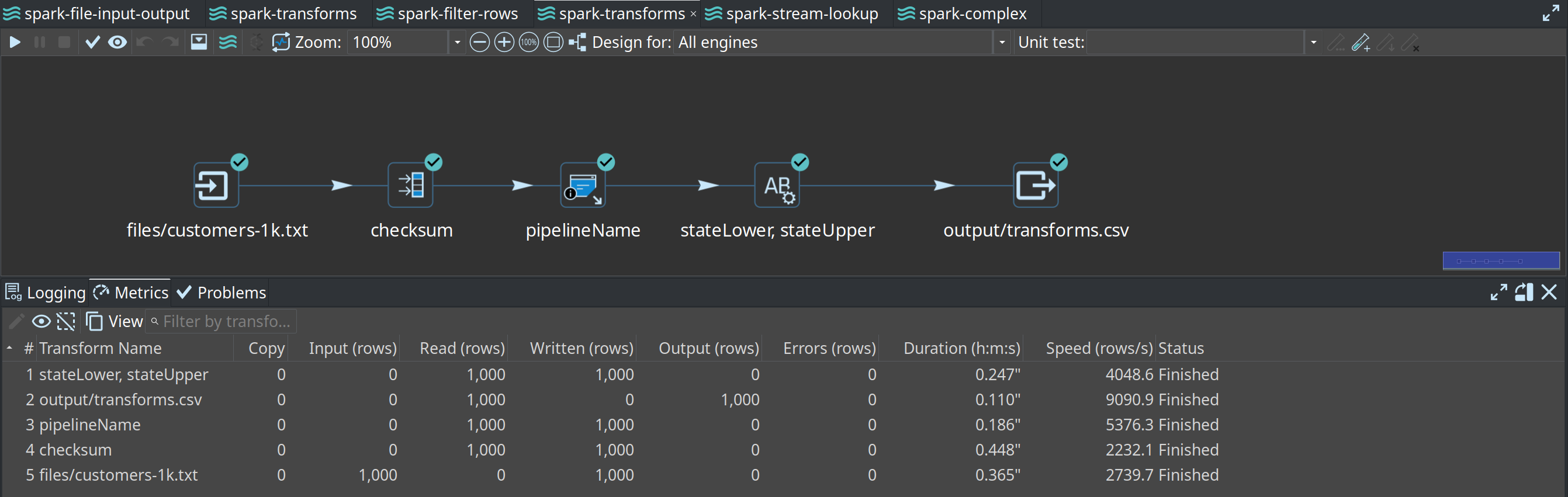

    • Transform metrics on the pipeline graph (input / output / written / errors)

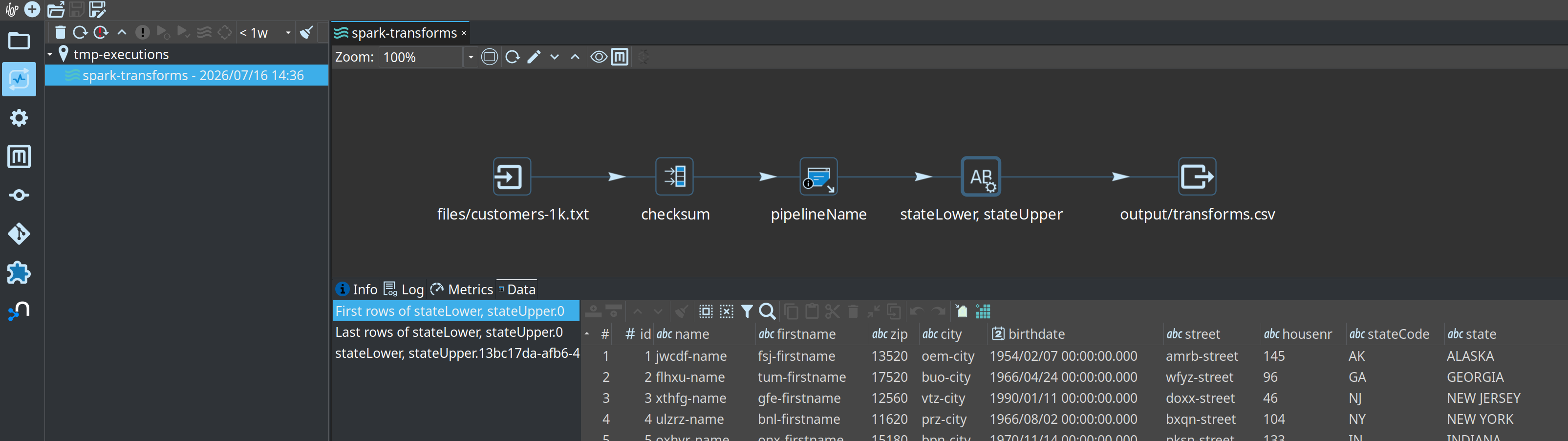

    • Execution Information perspective if you configured a location

You do not need spark-submit or a fat jar for this path. Hop starts an embedded Spark session and loads Spark from plugins/engines/spark/lib.

Run from the command line (local)

Same run configuration, no GUI:

./hop-run.sh \
  --project=your-project \
  --runconfig=spark-local \
  --file=/path/to/your-pipeline.hpl

Build a fat jar for cluster submit

On a real cluster you must not embed a second copy of Spark inside the application jar. The cluster already provides Spark 4.1. Embedding Spark leads to dual classpaths and failures on Java 21.

Use the special fat-jar token native-provided: Hop and plugins go into the jar; Spark stays out.

From Hop GUI

  1. Tools → Generate a Hop fat jar (when prompted for Spark client version for native submit, use the native-provided style packaging for cluster submit — or use the CLI below for an explicit flag).

  2. Save the jar outside the project (or gitignore it). Fat jars are large.

From the command line (recommended, explicit)

# From your Hop installation directory
./hop-conf.sh \
  --generate-fat-jar=/tmp/hop-native-spark4-submit.jar \
  --spark-client-version=native-provided
Token When to use Spark runtime

native-provided

spark-submit on a cluster

Cluster provides Spark 4.1.x (do not embed)

native

Rare: fat jar that includes Spark 4 from plugins/engines/spark/lib (not for normal cluster submit)

Embedded Spark 4

Export project metadata

Cluster runs need your Hop metadata (run configurations, execution locations, connections, etc.) as a single JSON file.

  • GUI: Tools → Export metadata to JSON

  • CLI:

./hop-conf.sh \
  --project=your-project \
  --export-metadata=/tmp/hop-metadata.json

Keep this export out of git if it is a point-in-time dump of secrets or large metadata; your project metadata/ folder is already the source of truth.

Detailed spark-submit instructions

  1. Install or unpack Spark 4.1.x (Hadoop 3 build is typical).

  2. Pin SPARK_HOME to that directory. If SPARK_HOME still points at an older Spark (for example 3.3), even a spark-submit binary from a 4.1 tree can re-exec the wrong spark-class and load the wrong version.

  3. Build the native-provided fat jar and export metadata (previous sections).

  4. Ensure the pipeline run configuration used on the cluster:

    • Engine = Native Spark pipeline engine (not Beam Spark)

    • Master blank (so spark-submit --master wins) or set to spark://host:7077

    • Fat jar field empty (the submit jar already carries Hop)

  5. Submit:

export SPARK_HOME=/path/to/spark-4.1.x-bin-hadoop3

"${SPARK_HOME}/bin/spark-submit" \
  --master spark://your-master:7077 \
  --deploy-mode client \
  --class org.apache.hop.spark.run.MainSpark \
  /tmp/hop-native-spark4-submit.jar \
  /path/to/pipeline.hpl \
  /tmp/hop-metadata.json \
  YourNativeSparkRunConfig \
  /path/to/cluster-env-config.json

Main class: org.apache.hop.spark.run.MainSpark

Positional arguments:

  1. Path to the pipeline (.hpl) — must be readable on the driver

  2. Path to metadata JSON — readable on the driver

  3. Name of the native Spark pipeline run configuration (as in metadata)

  4. Optional: environment configuration file (JSON) — extra variables for the run (see below)

Named arguments (equivalent):

"${SPARK_HOME}/bin/spark-submit" \
  --master spark://your-master:7077 \
  --class org.apache.hop.spark.run.MainSpark \
  /tmp/hop-native-spark4-submit.jar \
  --HopPipelinePath=/path/to/pipeline.hpl \
  --HopMetadataPath=/tmp/hop-metadata.json \
  --HopRunConfigurationName=YourNativeSparkRunConfig \
  --HopConfigFile=/path/to/cluster-env-config.json

Environment configuration file (4th argument)

On a laptop, Hop projects usually set PROJECT_HOME to a local folder. In a clustered spark-submit job that path often has no meaning: drivers and executors do not share your desktop filesystem, and paths in pipelines are typically ${PROJECT_HOME}/… or other project variables.

Pass an optional environment configuration file as the 4th positional argument (or --HopConfigFile=…). It uses the same JSON format as a Hop environment / hop-config variables file. MainSpark loads every described variable into the pipeline variable space before execution.

Example cluster-env-config.json:

{
  "variables": [
    {
      "name": "PROJECT_HOME",
      "value": "s3a://hop-project/",
      "description": "Project root on object storage for the cluster run (Spark/Hadoop S3A URI, not Hop VFS s3://)"
    },
    {
      "name": "OUTPUT_ROOT",
      "value": "s3a://hop-project/output/",
      "description": "Shared output prefix visible to all executors"
    }
  ]
}

Use this for any value that must differ between local development and the cluster: connection endpoints, bucket prefixes, ${PROJECT_HOME}, credentials placeholders you resolve elsewhere, and so on.

  • The config file path must be readable on the driver (local path on the submit machine, or a URI Hop VFS can open there).

  • Values such as s3a://hop-project/ only help if workers can actually read/write that location (correct Spark/Hadoop S3A configuration, IAM roles, etc.). Prefer s3a:// for Spark Dataset I/O — Hop VFS uses s3:// for a different stack. See Paths and file systems on native Spark.

  • Variables in this file override defaults for this submit only; they do not rewrite your project’s GUI environment on disk.

Data paths in the pipeline (files, tables, object stores) must be reachable from workers, not only from your laptop. Prefer HDFS, S3/GS/ABFS, or a shared mount — and set PROJECT_HOME (and similar) in the environment config so ${PROJECT_HOME}/… resolves correctly on the cluster.

Resource flags (optional examples):

"${SPARK_HOME}/bin/spark-submit" \
  --master spark://your-master:7077 \
  --executor-memory 4g \
  --executor-cores 2 \
  --driver-memory 2g \
  --class org.apache.hop.spark.run.MainSpark \
  /tmp/hop-native-spark4-submit.jar \
  /path/to/pipeline.hpl \
  /tmp/hop-metadata.json \
  YourNativeSparkRunConfig \
  /path/to/cluster-env-config.json

You can also put memory/core settings in the run configuration’s engine options; CLI flags are useful for per-job overrides.

Building Spark-oriented pipelines

Prefer Spark File Input and Spark File Output

For large or production Dataset I/O, use the dedicated transforms in the Big Data category:

  • Spark File Input — spark.read.format(…​).load

  • Spark File Output — df.write.format(…​).save

Typical first pipeline shape:

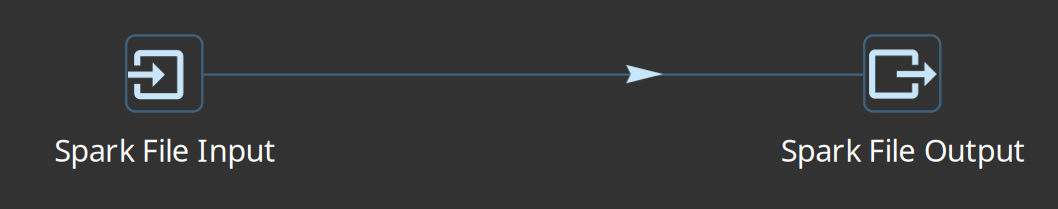

Spark File Input to Spark File Output sample

Spark File Input

Common options:

Option Notes

Spark path (Hadoop URI)

File, directory, or glob visible to Spark (local path on local[*]; cluster URI such as hdfs://… or s3a://… on submit). Not a Hop VFS path — see Paths and file systems.

Format

csv, parquet, json, orc, text

Header / separator / quote

CSV and text

Field list

Preferred for stable schemas. With a header, columns are selected and cast by name. Without a header, Spark names columns _c0, _c1, … and Hop maps them by position to your field list.

Infer schema

Optional; explicit fields are safer for production

Spark File Output

Option Notes

Spark path (Hadoop URI)

Output directory/prefix Spark should write to (same Spark/Hadoop dialect as input; not Hop VFS)

Format

csv, parquet, json, orc, text

Save mode

Overwrite, Append, Ignore, ErrorIfExists

Header

CSV/text

Coalesce

e.g. 1 for a single part file (costs a shuffle)

Partition by

Optional partition column list for directory partitioning

Writes run as Spark actions when the engine materialises the graph. Prefer Spark File Output for large partitioned writes to object stores or HDFS.

Open table formats (Delta Lake / Apache Iceberg)

Classic Spark File transforms cover csv / parquet / json / orc / text only. For ACID lake tables use the dedicated Lake Table transforms (Big Data category):

Connector JARs ship in the default Hop assembly under plugins/engines/spark/lib/{delta,iceberg} (and ride a native-provided fat jar for cluster submit). Full session conf, PATH vs TABLE, and samples: Lakehouse tables on the native Spark engine.

Classic Hop I/O and ${Internal.Transform.ID}

You can still use classic transforms such as Text File Input, Text File Output, Get File Names, or Microsoft Excel Input on the generic mapPartitions path (useful for POCs and small lookups). Those plugins are staged for the Spark engine via plugins/engines/spark/dependencies.xml.

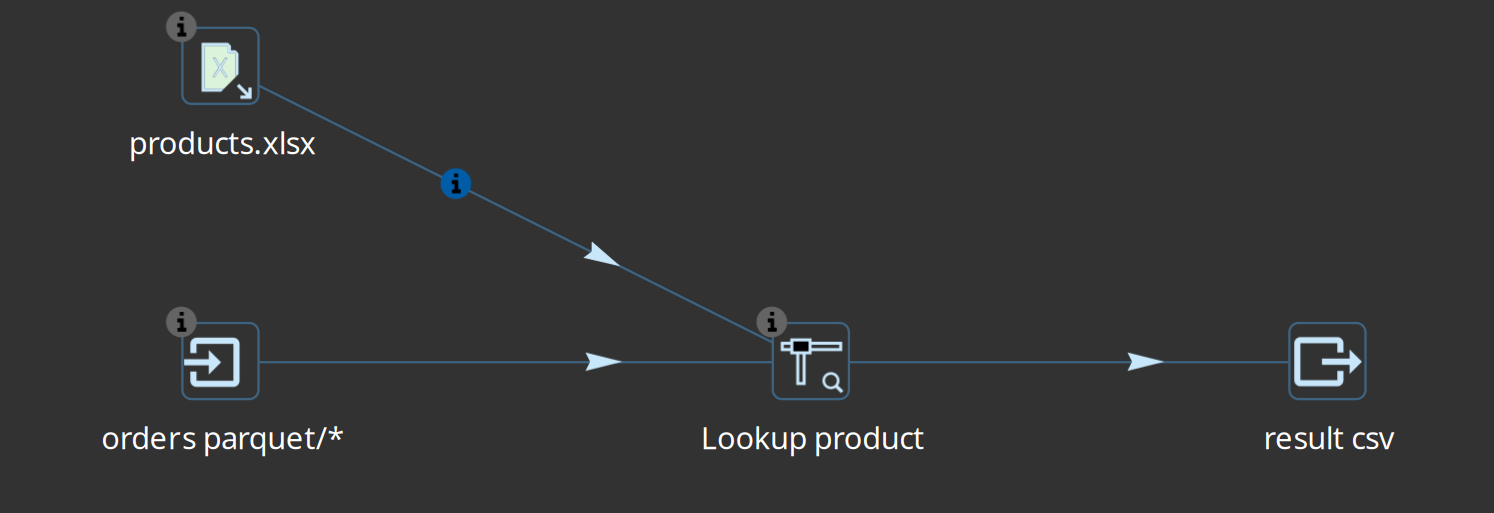

Sources with no previous hop (for example Get File Names, or Excel/Text Input reading a fixed file list) run on a single partition so the same small file is not listed or opened once per executor — the same idea as Beam’s single-thread pattern for non-Beam inputs.

Unique filenames per partition

Each Spark partition runs its own copy of a classic writer. If every copy uses the same path, files overwrite each other.

Recommended: put ${Internal.Transform.ID} in the filename template, for example:

${PROJECT_HOME}/out/export_${Internal.Transform.ID}.csv

On the native Spark engine, that variable is set to a readable value:

{transform-name}-{partition-id}

${Internal.Transform.CopyNr} and ${Internal.Transform.BundleNr} are set to the Spark partition id as well.

Also: the engine enables Beam-parity parallel-file context so Text File Output can auto-append <transformId><partition> to the built filename (same idea as Beam’s beamContext suffix). Relying on ${Internal.Transform.ID} in the path remains the clearest approach for operators.

For large distributed writes, prefer Spark File Output (Spark manages part files). Classic Text File Output is ideal for small POC side-loads and local/shared paths where unique names per partition are enough.

Accept filenames from a previous transform

Get File Names → Text File Input (accept filenames from field) works on native Spark: filename rows are the main Dataset into Text File Input; the mini-pipeline rebinds the accept source to the partition injector and preloads filename rows before the file reader drains them.

Example shape from the integration tests:

Get File Names to Text File Input to Spark File Output

Metrics and execution information

Live metrics in the pipeline editor

While a native Spark pipeline runs (and when it finishes), Hop shows transform-level metrics on the graph — lines read/written/input/output, errors, and running/finished state — similar to the local engine. Values are aggregated on the driver from Spark accumulators.

Runtime transform metrics and state on a native Spark pipeline

Execution information location

To keep history after the run (and to drill into past executions):

  1. Create an Execution information location (file, caching file, remote Hop Server, …).

  2. Optionally create an Execution data profile (first/last/random rows, etc.).

  3. On the Native Spark pipeline run configuration, set both on the main tab.

  4. Run a pipeline, then open the Execution Information perspective.

Execution information logged from a native Spark run

How data is produced:

  • State and metrics (updateExecutionState) — computed on the driver from EngineMetrics / accumulators for all transform types.

  • Row samples (registerData) — collected on executors for generic mapPartitions transforms when a data profile is set, then merged for the GUI (parent/child execution hierarchy, similar to Beam).

If the location is file-based and you need samples from cluster workers, the root folder must be writable from every executor (shared filesystem or object store). A path that exists only on the driver will still get pipeline/transform state, but executor samples will be missing or incomplete.

On Databricks, a practical pattern is a Caching File location whose root is a named Databricks VFS URI on a UC Volume (driver writes execution JSON via the Files API; laptop GUI opens the same location). Walkthrough: Execution information on a UC Volume.

On local[*], Spark’s Jackson libraries must not shadow Hop’s Jackson under the plugin classloader. The Spark plugin packaging excludes core Jackson jars so sampling and HopJson keep working.

How transforms map to Spark

Native handlers

These use Spark Dataset APIs on the driver graph (no per-row Hop mini-pipeline for the core of the work):

Transform Spark mapping

Memory Group By

groupBy + aggregations (SUM, AVG, MIN, MAX, COUNTs, FIRST/LAST, …)

Merge Join

Dataset.join (inner / left / right / full outer)

Unique Rows

dropDuplicates (optional count via groupBy)

Sort Rows

orderBy

Spark File Input / Output

spark.read / df.write

Generic mapPartitions transforms

Most other transforms — Filter Rows, Switch/Case, Stream Lookup, Calculator, Select Values, Dummy, classic file transforms, Excel, and many plugins — run inside mapPartitions:

  1. Each Spark partition starts a single-threaded Hop mini-pipeline for that transform.

  2. Partition rows are injected; outputs are collected back into a Dataset.

  3. Plugin JARs used by those transforms must be on the Spark classpath (dependencies.xml for the engine plugin, and the fat jar on the cluster).

Info streams and target streams

Info streams (side data)

Transforms such as Stream Lookup need a full secondary dataset while processing the main stream. The engine broadcasts the info Dataset to partitions (same idea as Beam View.asList). Configure the Stream Lookup from transform name exactly.

Target streams (conditional routing)

Filter Rows (true/false) and Switch/Case (cases + default) declare named targets. Each input row goes to one successor. Downstream hops use keys of the form Previous - TARGET - Current.

Multiple previous transforms

If several transforms hop into one (branches rejoin), row layouts must match (names, order, types). The engine unions those Datasets after a layout check (Beam Flatten equivalent).

Limitations and design rules

Keep these in mind when moving a local pipeline to native Spark.

Topic Behaviour on native Spark

Transforms marked Not Supported

See the authoritative list on Native Spark Pipeline Engine — Transforms not supported. It is derived from each transform page’s Supported Engines table (Native Spark row). Examples: sorted Group By (use Memory Group By), Beam-only I/O, barriers (Blocking until transforms finish), result-row hops, Kafka Consumer, multi-way / sorted merges.

Sorted Group By

Not supported. Use Memory Group By (native groupBy).

Copy vs Distribute on multi-hop output

Not implemented (same stance as Beam). Named target streams route by condition; plain multi-next hops without target metadata are rejected. Round-robin distribute is not available.

Streaming / windows

Out of scope. Use the Beam engines.

Native Spark Kafka

Not supported. There is no Hop transform that maps to Spark’s structured streaming / Kafka source-sink APIs. For Kafka-oriented Beam pipelines, use the Beam engines (e.g. Beam Kafka Consumer/Producer). Hop’s own Kafka transforms (if used) are not native-Spark Dataset I/O.

Spark SQL

Not supported as a first-class surface. You cannot submit arbitrary Spark SQL / DataFrame queries from Hop metadata; the engine only builds a Dataset graph from the Hop transform graph (plus native handlers for a fixed set of transforms).

MLlib / Spark ML

Not supported. There are no native handlers or transforms for training, pipelines, or model inference via Spark MLlib / spark.ml. Keep ML workloads in Spark jobs outside Hop, or call external services from ordinary Hop transforms where that fits.

Large Stream Lookup tables

Fully broadcast — size carefully.

Unique Rows (error stream)

Reject-to-error style options may not apply; prefer Dataset-oriented dedup semantics.

Transform copies / partitioning GUI

Parallelism comes from Spark partitions, not Hop “copies” in the local sense.

Plugins in mapPartitions

Must be present on the Spark classpath (staged list + fat jar). Missing plugins fail at runtime on the executor.

Beam-only transforms

Beam File I/O, Beam Kafka/Kinesis/BigQuery/… are for Beam engines, not native Spark.

Examples from the integration tests

The Hop source tree includes a self-contained project:

integration-tests/spark-native/

Open that folder as a Hop project (or copy patterns into your own). Workflows are named main-00xx-*.hwf and typically: clean output → run the Spark pipeline with spark-local → validate on the local engine.

0001 — Spark File Input / Output

Minimal path: read a CSV with Spark File Input, write with Spark File Output.

0001 input output

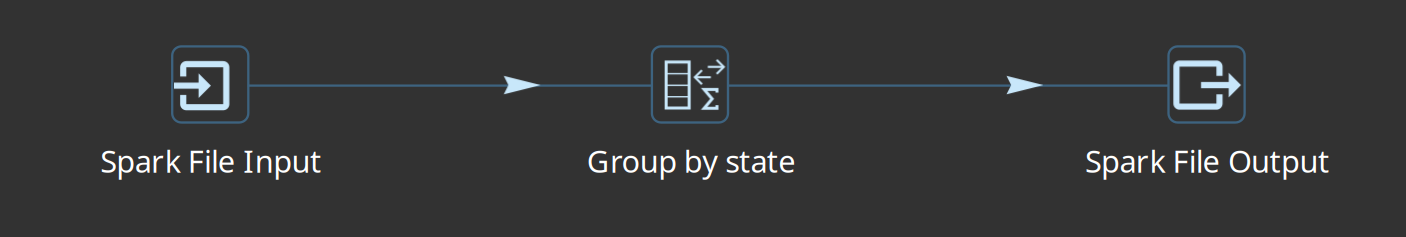

0002 — Memory Group By

Aggregation via the native Memory Group By handler (Spark groupBy).

0002 group by

0003 — Filter Rows

Row filtering in mapPartitions.

0003 filter rows

0004 — Stream Lookup (info stream)

Main stream plus a lookup Dataset broadcast into Stream Lookup — exercises info streams end-to-end.

0004 stream lookup

0005 — Filter Rows with target streams

True/false targets (conditional fan-out without Copy/Distribute).

0005 filter targets

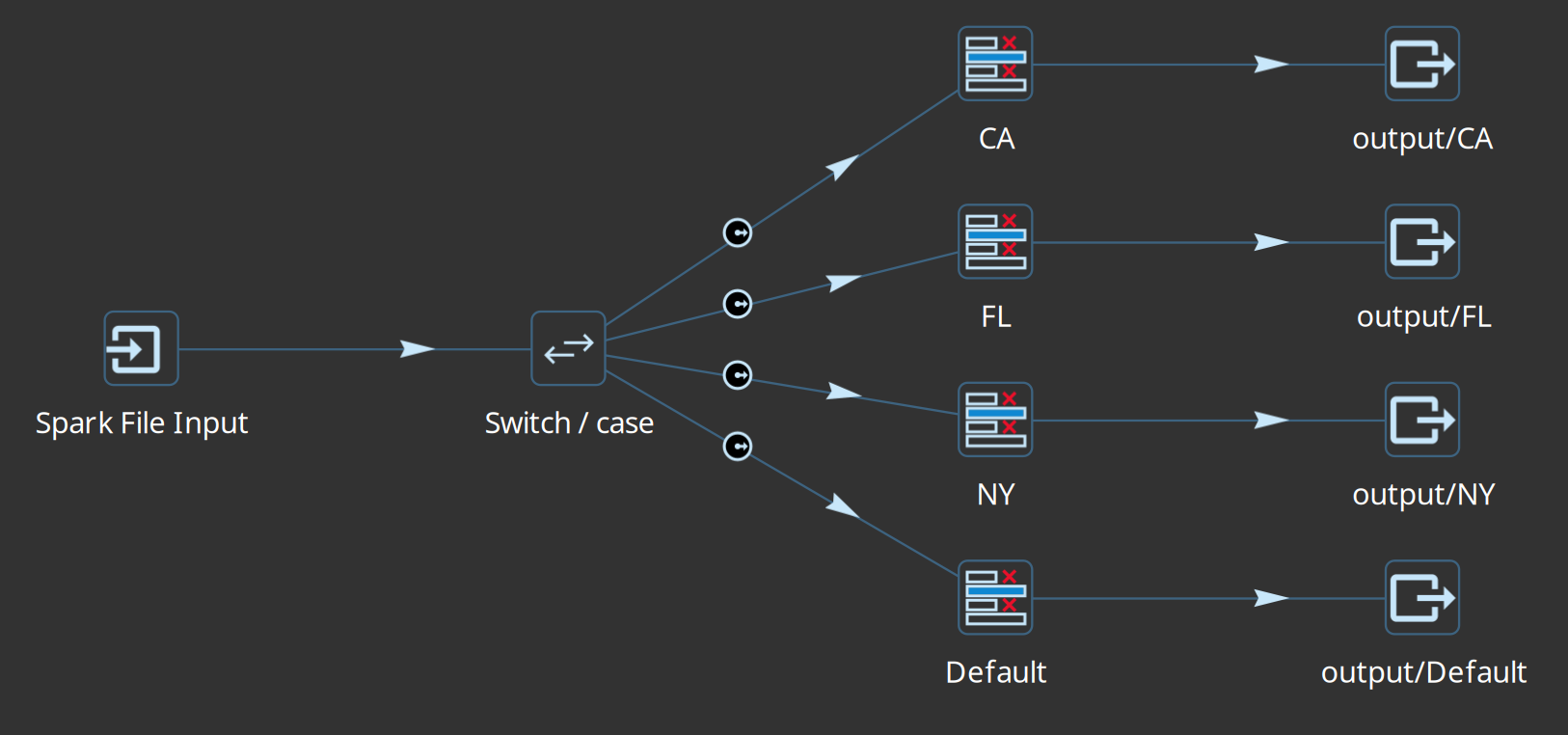

0006 — Switch / Case

Multi-way routing with named cases and default.

0006 switch case

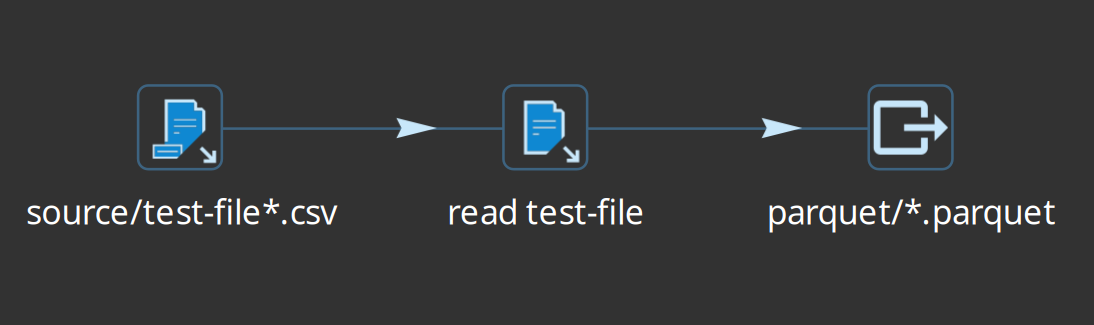

0007 — Classic Text File Input and Spark write-back

Get File Names → Text File Input (accept filenames) → Spark File Output (e.g. Parquet). Validates classic I/O and partition-safe readback.

0007 text file input spark readback

0008 — Excel info stream into Stream Lookup

Main data from multiple Parquet files (Spark File Input); product dimension from Microsoft Excel Input into Stream Lookup; CSV result via Spark File Output.

0008 excel stream lookup

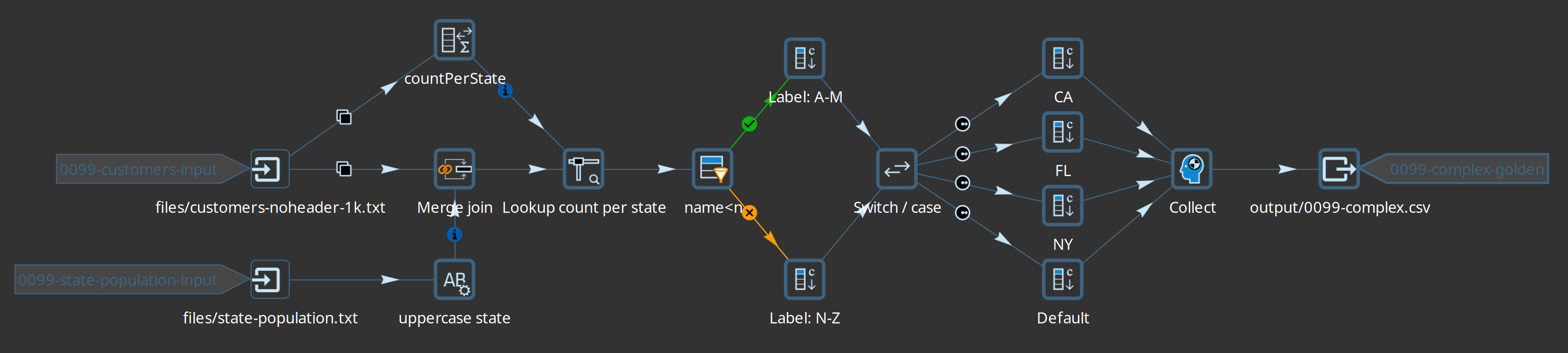

0099 — Complex sample

A larger pipeline combining several of the patterns above (good stress check for a full Hop + Spark install).

0099 complex sample

Checklist

  • Java 21; Hop 2.19+ with plugins/engines/spark

  • Run configuration engine = Native Spark (not Beam Spark)

  • First success on local[*] with Spark File Input → transform → Spark File Output

  • Execution information location attached if you need history and samples

  • Cluster: fat jar with --spark-client-version=native-provided

  • Cluster: SPARK_HOME pinned to Spark 4.1.x

  • Cluster: metadata JSON exported; run configuration name matches submit args

  • No sorted Group By; no reliance on Copy/Distribute multi-hop behaviour

  • Classic writers use ${Internal.Transform.ID} (or accept Spark File Output for bulk writes)

  • Lakehouse (optional): confirm plugins/engines/spark/lib/{delta,iceberg} present; see lakehouse guide

Related pages
