Import Kettle (PDI) Projects in Apache Hop

As stated in the Q&A, Apache Hop used Kettle (aka Pentaho Data Integration or PDI) as a starting point in late 2019. A lot has happened in the meantime on both Apache Hop and Pentaho Data Integration.

Compatibility with Kettle/PDI was never a goal for Apache Hop, but since a lot of organizations have invested vast amounts of resources in Kettle/PDI project development, the Apache Hop community provides a way to import Kettle/PDI code into Hop and convert the imported code the Hop ways of working.

Imported Items

jobs: convert to Workflows (kjb to hwf), job entries to actions
transformations: convert to Pipelines (ktr to hpl), steps to transforms
kettle.properties: import to project variables
shared.xml: extract relational database connections to Hop relational database connection metadata objects
jdbc.properties: extract JNDI (simple-jndi) relational database connections to Hop relational database connection metadata objects
connections in jobs and transformations are extracted and converted to Hop relational database connection metadata objects
import jobs, transformations and other files into a Hop project (selected or bootstrapped in specified folder)
repository references are extracted and converted to file references
SFTPPut steps: the server, credentials and proxy settings of the step are extracted into an SFTP Connection metadata object, and the transform is pointed at it by name. Steps talking to the same server share one connection.

Known limitations

no connection cleanup: only 1 copy of database connections with the same name but different configurations is kept. Names that only differ by case (Kettle was case-insensitive) are collapsed to one spelling.
no metastore import

Usage

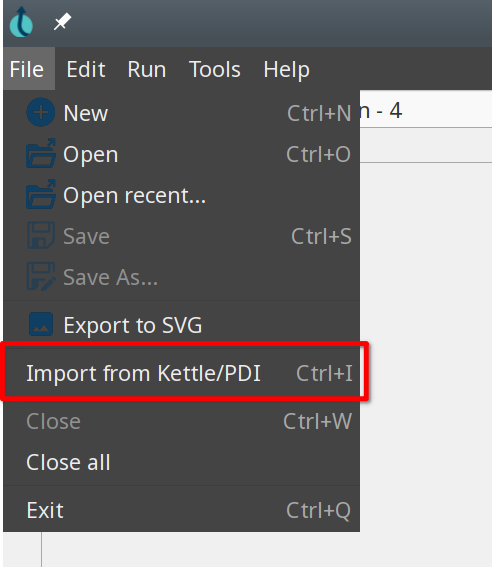

To import your Kettle/PDI projects in Hop, select File → Import from Kettle/PDI or press CTRL-i.

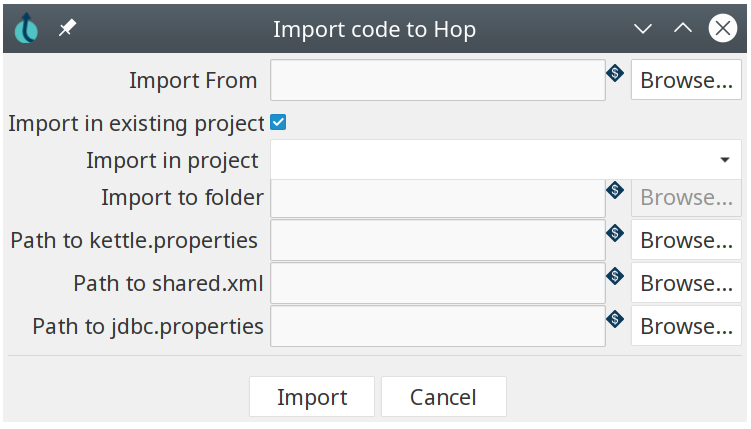

The dialog has three tabs: Source, Target, and Metadata. Import and Cancel stay at the bottom of the window.

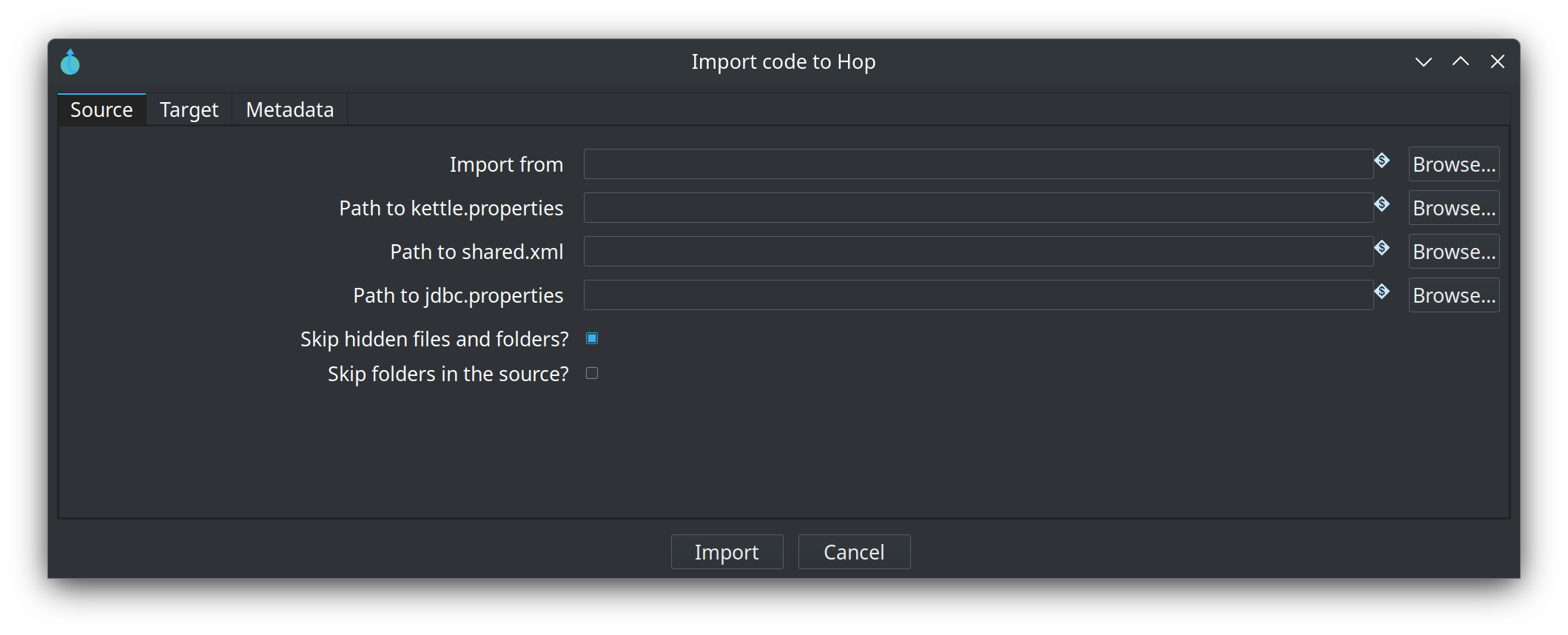

Source

Option Description Default

Option	Description	Default
Import from	The folder to import Kettle/PDI jobs and transformations from	-
Path to kettle.properties	Path to a kettle.properties file. All properties in this file will be imported as variables in the Hop project.	-
Path to shared.xml	Path to a shared.xml file. All database connections in this file will be imported as Hop relational database connection metadata objects in the specified Hop project or folder.	-
Path to jdbc.properties	Path to a jdbc.properties file. All Kettle/PDI JNDI database connections in this file will be imported as Hop (generic) relational database connection metadata objects in the specified Hop project or folder.	-
Skip hidden files and folders?	Exclude hidden files and folders such as `.git` and `.gitignore` from the import	Selected
Skip folders in the source?	Exclude the sub-folders of the source folder from the import	Selected

Import from

The folder to import Kettle/PDI jobs and transformations from

Path to kettle.properties

Path to a kettle.properties file. All properties in this file will be imported as variables in the Hop project.

Path to shared.xml

Path to a shared.xml file. All database connections in this file will be imported as Hop relational database connection metadata objects in the specified Hop project or folder.

Path to jdbc.properties

Path to a jdbc.properties file. All Kettle/PDI JNDI database connections in this file will be imported as Hop (generic) relational database connection metadata objects in the specified Hop project or folder.

Skip hidden files and folders?

Exclude hidden files and folders such as .git and .gitignore from the import

Selected

Skip folders in the source?

Exclude the sub-folders of the source folder from the import

Selected

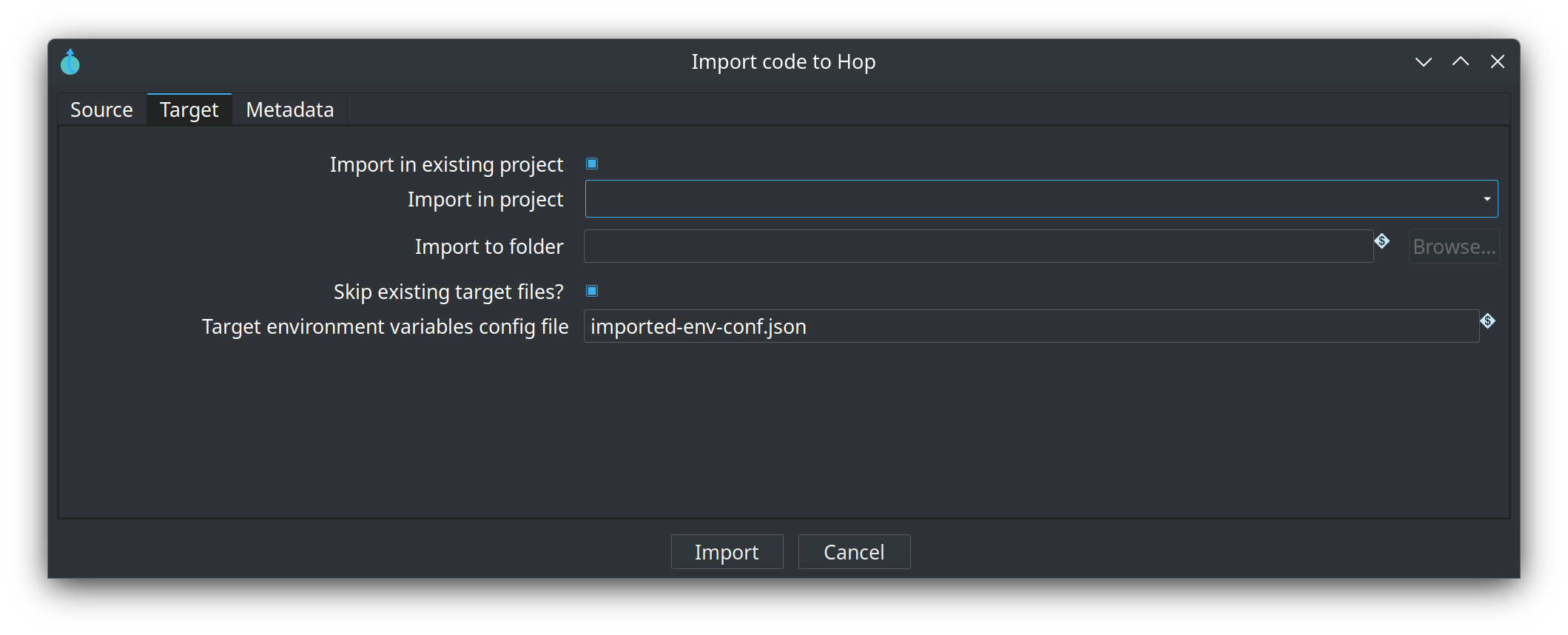

Target

Option Description Default

Option	Description	Default
Import in existing project	Check to import into an existing project, uncheck to import into a folder	Selected
Import in project	Dropdown list of available projects to import the Kettle/PDI project into	-
Import to folder	Path to import the Kettle/PDI project to. All imported items will be imported into a Hop project in this folder. Only available when Import in existing project is unchecked.	-
Skip existing target files?	Skip files that are already present in the target folder	Selected
Target environment variables config file	Name of the environment configuration file the variables from `kettle.properties` are written to	`imported-env-conf.json`

Import in existing project

Check to import into an existing project, uncheck to import into a folder

Selected

Import in project

Dropdown list of available projects to import the Kettle/PDI project into

Import to folder

Path to import the Kettle/PDI project to. All imported items will be imported into a Hop project in this folder. Only available when Import in existing project is unchecked.

Skip existing target files?

Skip files that are already present in the target folder

Selected

Target environment variables config file

Name of the environment configuration file the variables from kettle.properties are written to

imported-env-conf.json

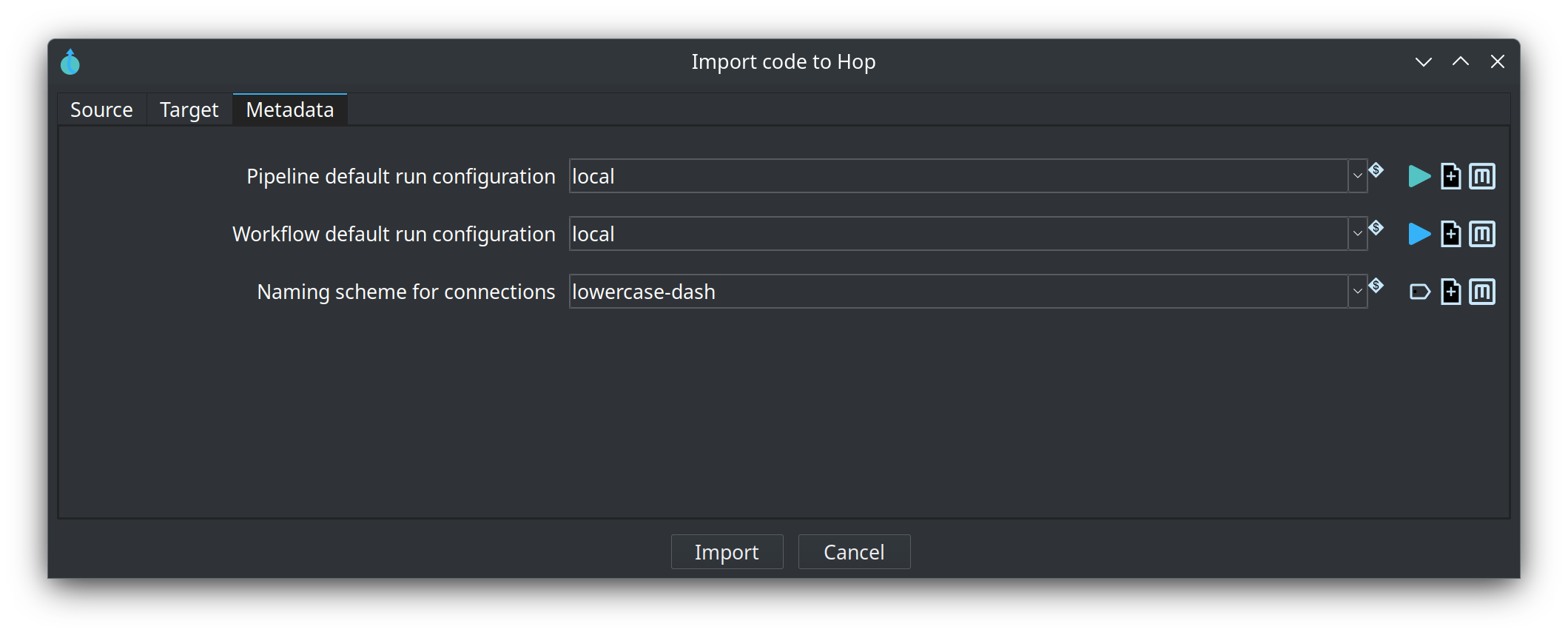

Metadata

Option Description Default

Option	Description	Default
Pipeline default run configuration	The run configuration set as the default on imported pipelines. The line lists objects from the target folder and the current project. New and Edit stay in memory until you click Import, which writes the selected object to the target project’s `metadata/` folder if it is not there yet.	-
Workflow default run configuration	The run configuration set as the default on imported workflows. Same in-memory-until-Import behaviour as the pipeline run configuration.	-
Naming scheme for connections	Optional naming scheme applied to imported relational connection names (the connection metadata and every `@HopMetadataProperty` of type `RDBMS_CONNECTION`). New and Edit stay in memory until Import. Leave empty to use the unique Hop-metadata (or General) scheme in the target folder. Connection names that only differ by case are always aligned, even without a scheme.	-

Pipeline default run configuration

The run configuration set as the default on imported pipelines. The line lists objects from the target folder and the current project. New and Edit stay in memory until you click Import, which writes the selected object to the target project’s metadata/ folder if it is not there yet.

Workflow default run configuration

The run configuration set as the default on imported workflows. Same in-memory-until-Import behaviour as the pipeline run configuration.

Naming scheme for connections

Optional naming scheme applied to imported relational connection names (the connection metadata and every @HopMetadataProperty of type RDBMS_CONNECTION). New and Edit stay in memory until Import. Leave empty to use the unique Hop-metadata (or General) scheme in the target folder. Connection names that only differ by case are always aligned, even without a scheme.

After entering your import details, click the 'Import' button.

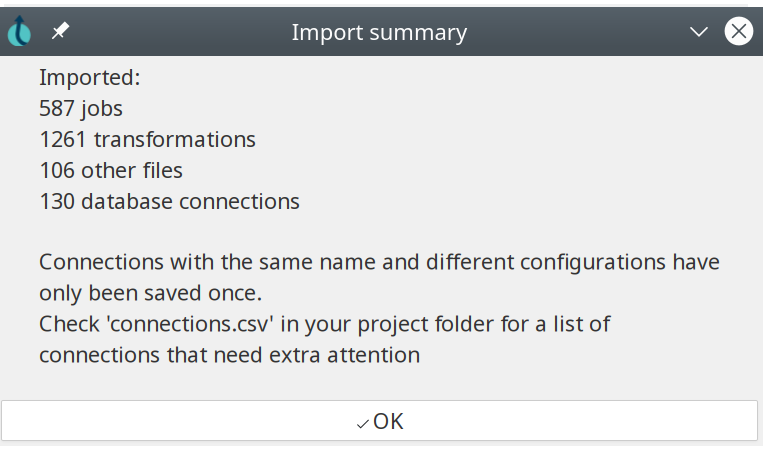

After a couple of seconds (even when importing large projects), you’ll be presented with a migration summary:

Import Report

The migration summary shows:

number of jobs
number of transformations
number of other files
number of variables
number of database connections

Only migrated items will be shown. Items that were not available in the specified folders or files for this import will not be shown.

When multiple database connections with the same name but different configurations were found (see 'Known limitations'), a connnections.csv file will be created in the project folder. This file contains a list of all jobs and transformations, with the connections they use.

Import from the CLI

The hop-import.sh/bat CLI tool lets you import Kettle/PDI projects from the command line.

Check the hop-import page for details.
