Hop Web

Hop Web is a web-based Hop Gui version. It uses code conversion to translate the default Hop Gui desktop application to a web-based version. Even though not perfect, Hop Web provides the default Hop Gui user experience in a browser.

Getting Hop Web

Hop Web is included in the default Hop build. With each build, an update is pushed to Docker Hub.

This continously updated docker image is by far the easiest way to try out Hop Web:

Pull the latest build with: docker pull apache/hop-web.

Once the image has been pulled, start Hop Web with docker run -p 8080:8080 apache/hop-web:latest

The Hop Web container should only take a couple of seconds to start. Your container logs should output similar to the example below:

22-Apr-2021 18:13:39.786 INFO [main] org.apache.catalina.startup.HostConfig.deployDirectory Deployment of web application directory [/usr/local/tomcat/webapps/ROOT] has finished in [8,274] ms
22-Apr-2021 18:13:39.790 INFO [main] org.apache.coyote.AbstractProtocol.start Starting ProtocolHandler ["http-nio-8080"]
22-Apr-2021 18:13:39.797 INFO [main] org.apache.catalina.startup.Catalina.start Server startup in [8319] milliseconds
2021/04/22 18:14:37 - Hop - Projects enabled
2021/04/22 18:14:37 - Hop - Enabling project : 'default'

Once your container has started, Hop Web is available at http://localhost:8080/ui. You’ll feel right at home!

Hop Web

Starting Hop Web with a project and environment

Hop Web accepts the same variables as the default Apache Hop container image to allow Hop Web users to specify their project and environment when starting a Hop Web container:

Environment Variable Description

Environment Variable	Description
`HOP_PROJECT_NAME`	Name of the Hop project to create in the container. You also need to specify the `HOP_PROJECT_FOLDER` variable. If you do not set this variable, no project or environment will be created.
`HOP_PROJECT_FOLDER`	Path to the home of the Hop project.
`HOP_ENVIRONMENT_NAME`	The name of the Hop environment to create in the container. If you do not set this variable, no environment will be created. When using an environment a project has to be created too
`HOP_ENVIRONMENT_CONFIG_FILE_NAME_PATHS`	This is a comma separated list of paths to environment config files (including filename and file extension).

HOP_PROJECT_NAME

Name of the Hop project to create in the container. You also need to specify the HOP_PROJECT_FOLDER variable. If you do not set this variable, no project or environment will be created.

HOP_PROJECT_FOLDER

Path to the home of the Hop project.

HOP_ENVIRONMENT_NAME

The name of the Hop environment to create in the container. If you do not set this variable, no environment will be created. When using an environment a project has to be created too

HOP_ENVIRONMENT_CONFIG_FILE_NAME_PATHS

This is a comma separated list of paths to environment config files (including filename and file extension).

Example docker run command to start Hop Web with a project and environment:

docker run -it --rm \
  --env HOP_PROJECT_FOLDER=/project \
  --env HOP_PROJECT_NAME=web-samples \
  --env HOP_ENVIRONMENT_NAME=web-samples-test \
  --env HOP_ENVIRONMENT_CONFIG_FILE_NAME_PATHS=/config/web-samples-test.json \
  --name hop-web-test-container \
  -p 8080:8080 \
  -v <PATH_TO_YOUR_PROJECT>:/project \
  -v <PATH_TO_YOUR_ENVIRONMENT>:/config \
  hop-web

Using the Hop CLI tools in Hop Web.

Hop Web contains the default Hop tools like hop-conf, hop-run etc.

The tools are available in /usr/local/tomcat/webapps/ROOT in a running Hop Web container.

Authentication

Hop Web runs on a Tomcat server by default. You can extend Hop Web’s tomcat configuration to add authentication.

The default Hop Web docker image picks up tomcat-users.xml and web.xml files and moves them to the correct location before Hop Web starts.

A minimal sample tomcat-users.xml file:

<?xml version='1.0' encoding='utf-8'?>
<!--
  ~ Licensed to the Apache Software Foundation (ASF) under one or more
  ~ contributor license agreements.  See the NOTICE file distributed with
  ~ this work for additional information regarding copyright ownership.
  ~ The ASF licenses this file to You under the Apache License, Version 2.0
  ~ (the "License"); you may not use this file except in compliance with
  ~ the License.  You may obtain a copy of the License at
  ~
  ~       http://www.apache.org/licenses/LICENSE-2.0
  ~
  ~ Unless required by applicable law or agreed to in writing, software
  ~ distributed under the License is distributed on an "AS IS" BASIS,
  ~ WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
  ~ See the License for the specific language governing permissions and
  ~ limitations under the License.
  ~
  -->
<tomcat-users>
  <role rolename="apachehop"/>
  <user username="apachehop" password="password" roles="apachehop" />
</tomcat-users>

The following sample web.xml extends Hop Web’s default web.xml with the <security-constraint /> and <login-config /> elements required for basic authentication.

<?xml version="1.0" encoding="UTF-8"?>
<!--
  ~ Licensed to the Apache Software Foundation (ASF) under one or more
  ~ contributor license agreements.  See the NOTICE file distributed with
  ~ this work for additional information regarding copyright ownership.
  ~ The ASF licenses this file to You under the Apache License, Version 2.0
  ~ (the "License"); you may not use this file except in compliance with
  ~ the License.  You may obtain a copy of the License at
  ~
  ~       http://www.apache.org/licenses/LICENSE-2.0
  ~
  ~ Unless required by applicable law or agreed to in writing, software
  ~ distributed under the License is distributed on an "AS IS" BASIS,
  ~ WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
  ~ See the License for the specific language governing permissions and
  ~ limitations under the License.
  ~
  -->

<web-app xmlns="http://java.sun.com/xml/ns/j2ee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://java.sun.com/xml/ns/j2ee http://java.sun.com/xml/ns/j2ee/web-app_2_4.xsd"
         version="2.4">

    <context-param>
        <param-name>org.eclipse.rap.applicationConfiguration</param-name>
        <param-value>org.apache.hop.ui.hopgui.HopWeb</param-value>
    </context-param>

    <listener>
        <listener-class>org.apache.hop.ui.hopgui.HopWebServletContextListener</listener-class>
    </listener>

    <servlet>
        <servlet-name>HopGui</servlet-name>
        <servlet-class>org.eclipse.rap.rwt.engine.RWTServlet</servlet-class>
    </servlet>

    <servlet-mapping>
        <servlet-name>HopGui</servlet-name>
        <url-pattern>/ui</url-pattern>
    </servlet-mapping>

    <servlet>
        <servlet-name>welcome</servlet-name>
        <jsp-file>/docs/English/welcome/index.html</jsp-file>
    </servlet>
    <servlet-mapping>
        <servlet-name>welcome</servlet-name>
        <url-pattern>/docs/English/welcome/index.html</url-pattern>
    </servlet-mapping>

    <servlet>
        <servlet-name>Server</servlet-name>
        <servlet-class>org.apache.hop.www.HopServerServlet</servlet-class>
    </servlet>
    <servlet-mapping>
        <servlet-name>Server</servlet-name>
        <url-pattern>/hop/*</url-pattern>
    </servlet-mapping>

    <security-constraint>
      <web-resource-collection>
        <web-resource-name>Wildcard means whole app requires authentication</web-resource-name>
          <url-pattern>/*</url-pattern>
          <http-method>GET</http-method>
          <http-method>POST</http-method>
        </web-resource-collection>
      <auth-constraint>
        <role-name>apachehop</role-name>
      </auth-constraint>

      <user-data-constraint>
        <!-- transport-guarantee can be CONFIDENTIAL, INTEGRAL, or NONE -->
        <transport-guarantee>NONE</transport-guarantee>
      </user-data-constraint>
    </security-constraint>

    <login-config>
      <auth-method>BASIC</auth-method>
    </login-config>

</web-app>

Check the Apache Tomcat documentation on REALM configuration for more advanced configurations.

Mount your local configuration folder with these two files to a /config folder in the Apache Hop Web container to do so:

docker run -it --rm \
    -p 8080:8080 \
    -v <PATH_TO_YOUR_LOCAL_CONFIG_DIRECTORY>:/config/ \
    apache/hop-web

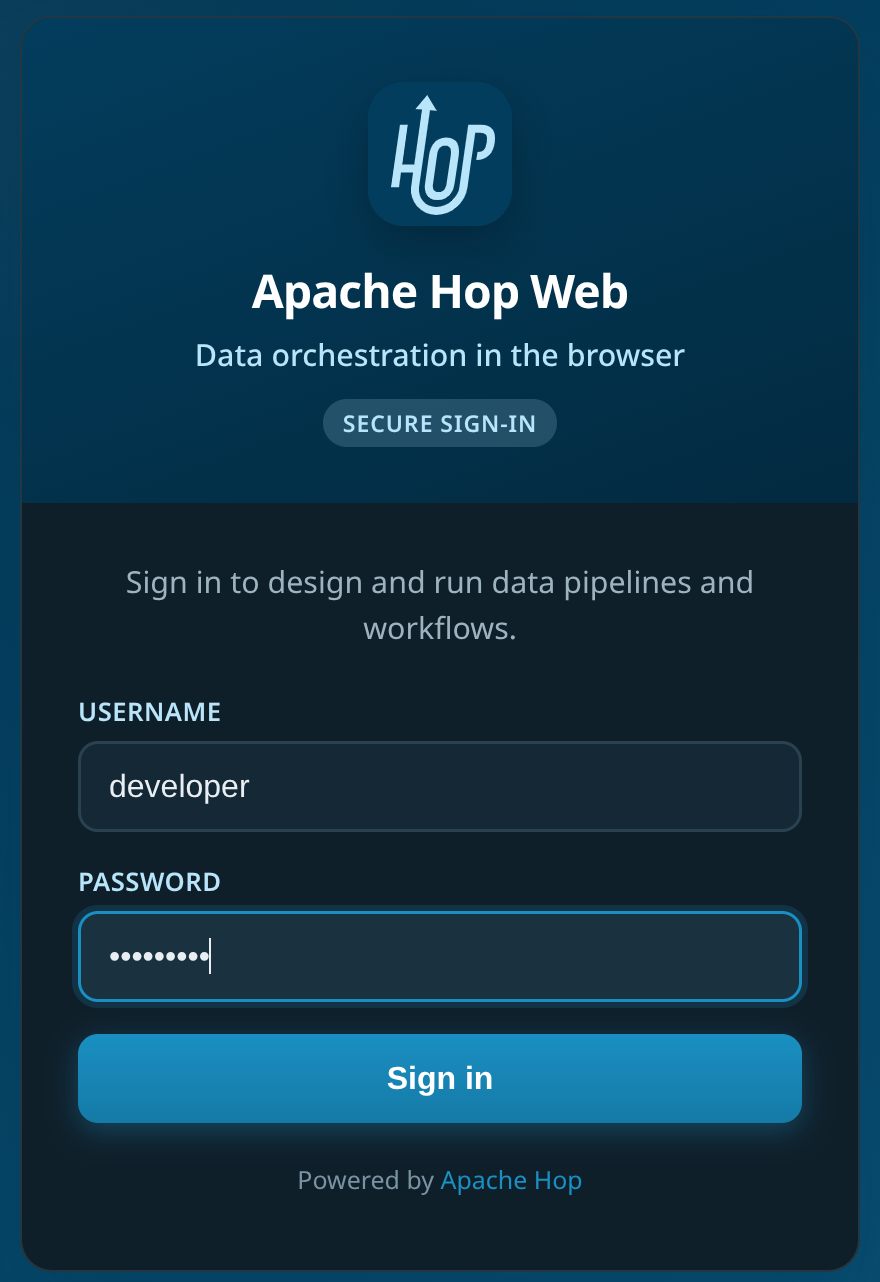

Hop Web will now ask for your username and password:

Hop Web with basic authentication

Encrypting passwords

The tomcat-users.xml shown above stores the password in plain text. Tomcat can store a digested (hashed) password instead, so the clear text password is no longer readable in your configuration files.

To do so, add a CredentialHandler to the realm in Tomcat’s server.xml and store the digested password in tomcat-users.xml.

this only protects the password at rest in tomcat-users.xml. With BASIC authentication the password is still sent by the browser on every request, so combine this with HTTPS to protect it in transit.

Generate the digested password

Use Tomcat’s digest.sh tool to generate the digest for your password:

docker run --rm apache/hop-web /usr/local/tomcat/bin/digest.sh -a sha-256 mypassword

This returns the clear text password and its digest, separated by a colon:

mypassword:f1a6f243e12c5c87ddaaf860cb32c1f73d3985e1a784396097e1af0a26d9f176$1$fc86de3e34b71b9f9c415aa7908123e576984adb9f38612fbf7d595f2e00e460

The part after the colon is what you’ll store in tomcat-users.xml. It has the format {salt}${iterations}${digest}: by default digest.sh generates a random 32 byte salt and uses one iteration, which means the value is different every time you run the command even for the same password.

SHA-512 works the same way, pass -a sha-512 instead. Avoid MD5 and SHA-1, they are no longer considered secure.

Configure the realm

Add the CredentialHandler to the UserDatabaseRealm in $CATALINA_HOME/conf/server.xml. In a default Tomcat installation this realm is nested inside a LockOutRealm:

<Realm className="org.apache.catalina.realm.LockOutRealm">
  <Realm className="org.apache.catalina.realm.UserDatabaseRealm"
         resourceName="UserDatabase">
    <CredentialHandler className="org.apache.catalina.realm.MessageDigestCredentialHandler"
                       algorithm="SHA-256"/>
  </Realm>
</Realm>

The algorithm needs to match the one you used to generate the digest.

Store the digest instead of the clear text password in tomcat-users.xml:

<tomcat-users>
  <role rolename="apachehop"/>
  <user username="apachehop"
        password="f1a6f243e12c5c87ddaaf860cb32c1f73d3985e1a784396097e1af0a26d9f176$1$fc86de3e34b71b9f9c415aa7908123e576984adb9f38612fbf7d595f2e00e460"
        roles="apachehop"/>
</tomcat-users>

Run the container

Unlike tomcat-users.xml and web.xml, the Hop Web image does not pick up a server.xml from the /config folder, so mount it straight to Tomcat’s conf folder:

docker run -it --rm \
    -p 8080:8080 \
    -v <PATH_TO_YOUR_LOCAL_CONFIG_DIRECTORY>:/config/ \
    -v <PATH_TO_YOUR_LOCAL_CONFIG_DIRECTORY>/server.xml:/usr/local/tomcat/conf/server.xml \
    apache/hop-web

Hop Web keeps asking for the same username and password as before, but the clear text password is no longer stored in your configuration.

Check the Apache Tomcat documentation on digested passwords for more details.
